Cartons
| Tuck Top Auto Bottom Boxes | becf-11110
Dieline
a : length
in
b : width
in
c : height
in
overflow
This has been automatically calculated.
glue margin
This has been automatically calculated.
f : hanger tab heigt
in
We recommend: 1.0
i : hanger tab diameter
in
We recommend: 0.5
glue flap
in
We recommend: 0.5
top tuck flap
in
We recommend: 0.5
dust flap
in
We recommend: 1.5
bottom tuck flap
in
We recommend: 0.5
lock tab
This has been automatically calculated.

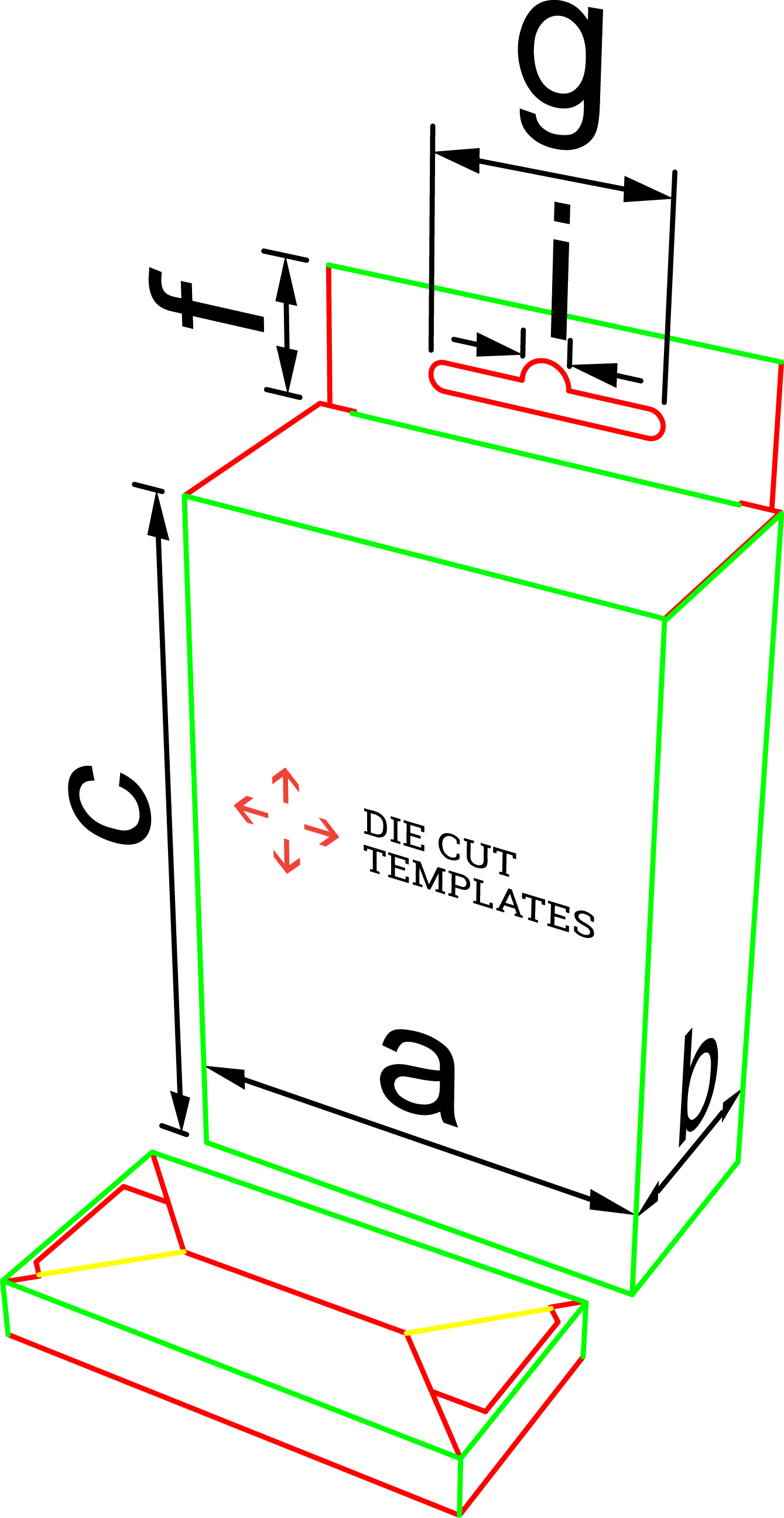

Tuck Top Auto Bottom Boxes | becf-11110
- Tuck top auto bottom box is delivered to the customer the way that bottom end is glued and folded. It is already setup and ready to use when unfolded.
- It enables quick setup and is suitable for both automatic and manual filling.
- Tuck top auto bottom box works well for heavier products. The product should be maximum 1 kg. and shouldn’t spill or leak. If the product is dusty or liquid, it should have its own packaging and the product shouldn’t contact the interior of box directly.
- Tuck top auto bottom boxes are preferred especially in the markets including cosmetics, beauty, health, medical, food and toy.
