Free Dielines


Cartons | Food Boxes | becf-12001

  • This box is called as hinged stripper lock tray box or side lock cake box.
  • Food boxes are used to keep and carry food products safely and easily.
  • This category contains various box types including dessert box, bakery box, cake box, cupcake box, donut box, macaron box, pizza box, chocolate box and pastry box.
  • Food boxes are produced in accordance with the dimensions and weight of the product to keep.
  • These are disassembled boxes so they are delivered to the customer as a flat sheet and set up manually by folding up and locking together the sides.
  • Because these boxes keep food they should be laminated.

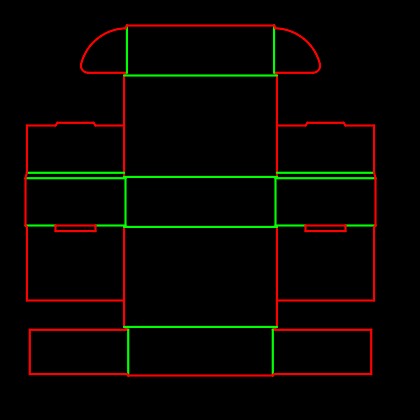

Packaging Template Dieline for Food boxes | becf-12001 B15.06.00.53
This template is free to download in the following dimensions. Click here customize and download in other dimensions.

a : length 10.0394 in
b : width 7.0079 in
c : height 1.5748 in
top tuck flap 0.8858 in
Material SBS C1S 350gsm 18.7pt, 0.019in


Cartons | Polygonal Boxes | becf-12801

  • Hexagon box is the box type with six equal sides in contradistinction to classical box with four sides. They specifically draw attention from consumers, because they seem different.
  • Hexagon boxes are especially used in the markets including cosmetics, food, textile and toy. Besides they are mostly preferred as gift boxes.
  • It is possible to make hexagon boxes much more stylish covering with several materials such as sateen, suede, artificial leather or velvet.
Packaging Template Dieline for Polygonal boxes | becf-12801 C10.40.55.20
This template is free to download in the following dimensions. Click here customize and download in other dimensions.

a : length 2.3622 in
c : height 5.9055 in
glue flap 0.5 in
top tuck flap 0.8 in
dust flap 0.788 in
bottom tuck flap 0.8 in
Material SBS C1S 350gsm 18.7pt, 0.019in


Cartons | Tray Boxes | becf-11701

  • This box is called as roll front end tuck box or roll end tuck top box.
  • Tray boxes are used for products like honey, jam, beverage and conserved food offered in the glass jar or bottle.
  • Products can be displayed, stored or carried in tray boxes.
  • Tray boxes are prepared the way that four corners are glued and locked. Glued boxes are ready to use when delivered to the customer. However locked boxes are delivered to the customer flatly and locked manually by the customer to operationalize the packaging.
  • Top of the box is open. If required it can be used with lid.
  • Tray box mostly used in food industry is also called jar box or bottle box.
  • It is also preferred in broad range of sectors like textile and technology (mobile phone box, clothing box, necktie box etc.) with lid.
Packaging Template Dieline for Tray boxes | becf-11701 B20.01.00.53.B
This template is free to download in the following dimensions. Click here customize and download in other dimensions.

a : length 5.9055 in
b : width 3.937 in
c : height 1.5748 in
Material SBS C1S 350gsm 18.7pt, 0.019in


Corrugated Cardboards | Tray Boxes | becf-21b01

  • Tray box is used for products like honey, jam, beverage and conserved food offered in the glass jar or bottle.
  • Products can be displayed, stored or carried in tray box.
  • Tray box is prepared the way that four corners are glued and locked. Glued boxes are ready to use when delivered to the customer. However locked boxes are delivered to the customer flatly and locked manually by the customer to operationalize the packaging.
  • Top of the box is open. If required it can be used with lid.
  • Tray box mostly used in food industry is also called jar box or bottle box.
  • It is also preferred in broad range of sectors like textile and technology (mobile phone box, clothing box, necktie box etc.) with lid.
Packaging Template Dieline for Tray boxes | becf-21b01  0330
This template is free to download in the following dimensions. Click here customize and download in other dimensions.

a : length 5.9055 in
b : width 3.937 in
c : height 1.5748 in
h : cover height 1.1811 in
Material E FLUTE 1/16 in
Internal dimensions False


Corrugated Cardboards | Special Boxes | becf-21e04

  • Special boxes produced for special occasions such as Valentines Day, New Year's Day, Mother’s Day, corporate presentation boxes, launch boxes, promotion boxes, corporate anniversary and celebration boxes are some of exclusive boxes.
  • Exclusive boxes can also be used to add extra value to a product or differentiate it from competition.
Packaging Template Dieline for Special boxes | becf-21e04
This template is free to download in the following dimensions. Click here customize and download in other dimensions.

a : length 5.9055 in
b : width 3.937 in
c : height 3.1496 in
e : cover height 1.378 in
Material E FLUTE 1/16 in
Internal dimensions False


Cartons | Food Boxes | becf-12008

  • This box is called as carrier tray box.
  • Food boxes are used to keep and carry food products safely and easily.
  • This category contains various box types including dessert box, bakery box, cake box, cupcake box, donut box, macaron box, pizza box, chocolate box and pastry box.
  • Food boxes are produced in accordance with the dimensions and weight of the product to keep.
  • These are disassembled boxes so they are delivered to the customer as a flat sheet and set up manually by folding up and locking together the sides.
  • Because these boxes keep food they should be laminated as it should be.
Packaging Template Dieline for Food boxes | becf-12008 B40.10.84.00.84.B
This template is free to download in the following dimensions. Click here customize and download in other dimensions.

a : length 1.9685 in
b : width 1.9685 in
c : height 1.1811 in
Material SBS C1S 350gsm 18.7pt, 0.019in


Cartons | Tray Boxes | becf-11a05

  • This box is called as sleeve tray box.
  • Tray boxes are used for products like honey, jam, beverage and conserved food offered in the glass jar or bottle.
  • Products can be displayed, stored or carried in tray box.
  • Tray boxes are prepared the way that four corners are glued and locked. Glued boxes are ready to use when delivered to the customer. However locked boxes are delivered to the customer flatly and locked manually by the customer to operationalize the packaging.
  • Top of the box is open. If required it can be used with lid.
  • Tray box mostly used in food industry is also called jar box or bottle box.
  • It is also preferred in broad range of sectors like textile and technology (mobile phone box, clothing box, necktie box etc.) with lid.
Packaging Template Dieline for Tray boxes | becf-11a05 B20.02.00.00.A
This template is free to download in the following dimensions. Click here customize and download in other dimensions.

a : length 3.937 in
b : width 1.9685 in
c : height 1.1811 in
glue flap 0.5 in
lock flap 0.5 in
Material SBS C1S 350gsm 18.7pt, 0.019in


Hard Cardboards | Display materials | becf-30701

  • Easel back lets you stylishly and conveniently display posters to get maximum customer visibility.
  • It’s also called cardboard easel or double wing easel.
  • Easel back is used in various display and promotion applications made of photoblock, cardboard and forex.
  • It provides steady support with its double-winged structure.
  • Easel back is made of corrugated cardboard or hard cardboard.
Packaging Template Dieline for Display materials | becf-30701
This template is free to download in the following dimensions. Click here customize and download in other dimensions.

a : length 11.6929 in
b : width 8.2677 in
Material CARDBOARD 20 - 80pt, 0.079in


Corrugated Cardboards | Tray Boxes | becf-21705

  • Tray box is used for products like honey, jam, beverage and conserved food offered in the glass jar or bottle.
  • Products can be displayed, stored or carried in tray box.
  • Tray box is prepared the way that four corners are glued and locked. Glued boxes are ready to use when delivered to the customer. However locked boxes are delivered to the customer flatly and locked manually by the customer to operationalize the packaging.
  • Top of the box is open. If required it can be used with lid.
  • Tray box mostly used in food industry is also called jar box or bottle box.
  • It is also preferred in broad range of sectors like textile and technology (mobile phone box, clothing box, necktie box etc.) with lid.
Packaging Template Dieline for Tray boxes | becf-21705  0426
This template is free to download in the following dimensions. Click here customize and download in other dimensions.

a : width 7.4803 in
b : length 7.4803 in
c : height 1.7717 in
e : cover flap 1.7717 in
Material E FLUTE 1/16 in
Internal dimensions False


Corrugated Cardboards | Tray Boxes | becf-21701

  • Tray box is used for products like honey, jam, beverage and conserved food offered in the glass jar or bottle.
  • Products can be displayed, stored or carried in tray box.
  • Tray box is prepared the way that four corners are glued and locked. Glued boxes are ready to use when delivered to the customer. However locked boxes are delivered to the customer flatly and locked manually by the customer to operationalize the packaging.
  • Top of the box is open. If required it can be used with lid.
  • Tray box mostly used in food industry is also called jar box or bottle box.
  • It is also preferred in broad range of sectors like textile and technology (mobile phone box, clothing box, necktie box etc.) with lid.
Packaging Template Dieline for Tray boxes | becf-21701  0427
This template is free to download in the following dimensions. Click here customize and download in other dimensions.

a : length 5.9055 in
b : width 3.937 in
c : height 1.5748 in
dust flap 1.6474 in
Material E FLUTE 1/16 in
Internal dimensions False


Corrugated Cardboards | Standard Boxes | becf-21e02

  • Standard box is one of the most used box models. It is also called a type box.
  • Lengths of all covers are equal. The outer covers which are broader converge on the middle of box. When the inner covers are closed, the distance on the middle changes according to width-to-length ratio. In the square boxes there are no difference between four covers.
  • Standard boxes are made by corrugated cardboards or cartons.
  • It is one of the most frequently preferred box models for both professional and personal needs because it enables easy mass production and is economical.
Packaging Template Dieline for Standard boxes | becf-21e02  0471
This template is free to download in the following dimensions. Click here customize and download in other dimensions.

a : length 5.9055 in
b : width 3.937 in
c : height 1.9685 in
Material E FLUTE 1/16 in
Internal dimensions False


Corrugated Cardboards | Special Boxes | becf-21e07

  • Special boxes produced for special occasions such as Valentines Day, New Year's Day, Mother’s Day, corporate presentation boxes, launch boxes, promotion boxes, corporate anniversary and celebration boxes are some of exclusive boxes.
  • Exclusive boxes can also be used to add extra value to a product or differentiate it from competition.
Packaging Template Dieline for Special boxes | becf-21e07  0207
This template is free to download in the following dimensions. Click here customize and download in other dimensions.

a : length 5.9055 in
b : width 3.937 in
c : height 3.1496 in
f : separator height 1.5748 in
glue flap 1.0 in
top tuck flap 0.712 in
dust flap 2.3045 in
Material E FLUTE 1/16 in
Internal dimensions False


Corrugated Cardboards | Special Boxes | becf-21e21

  • Special boxes produced for special occasions such as Valentines Day, New Year's Day, Mother’s Day, corporate presentation boxes, launch boxes, promotion boxes, corporate anniversary and celebration boxes are some of exclusive boxes.
  • Exclusive boxes can also be used to add extra value to a product or differentiate it from competition.
Packaging Template Dieline for Special boxes | becf-21e21  0717
This template is free to download in the following dimensions. Click here customize and download in other dimensions.

a : length 7.4409 in
c : height 9.0551 in
d : bottom height 2.2638 in
e : hand holding area 2.7559 in
glue flap 1.0 in
bottom tuck flap 0.8 in
Material E FLUTE 1/16 in
Internal dimensions False


Corrugated Cardboards | Special Boxes | becf-21e22

  • Special boxes produced for special occasions such as Valentines Day, New Year's Day, Mother’s Day, corporate presentation boxes, launch boxes, promotion boxes, corporate anniversary and celebration boxes are some of exclusive boxes.
  • Exclusive boxes can also be used to add extra value to a product or differentiate it from competition.
Packaging Template Dieline for Special boxes | becf-21e22
This template is free to download in the following dimensions. Click here customize and download in other dimensions.

a : length hole number 0.1181
b : width hole number 0.0787
h : height 1.5748 in
d : hole diameter 2.3622 in
c : horizontal margin 0.7874 in
e : vertical margin 0.7874 in
Material E FLUTE 1/16 in
Internal dimensions False


Cartons | Shirt Boxes | becf-12408

  • This box is called as buffer wall tray with webbed corners box.
  • Shirt boxes which made of cardboard or carton are produced as two separate pieces (box itself and lid).
  • Shirt boxes which made of cardboard have longer shelf life.
  • On the other hand shirt boxes which made of carton are more frequently used ones. They can be produced with window or no window. These are disassembled boxes so they are delivered to the customer unassembled and locked manually by customer for usage.
Packaging Template Dieline for Shirt boxes | becf-12408 B14.05.00.00
This template is free to download in the following dimensions. Click here customize and download in other dimensions.

a : length 5.9055 in
b : width 3.937 in
c : height 1.1811 in
d : wall width 0.6 in
inside flap 0.472 in
slide glue flap 0.5 in
x : lock margin 0.6 in
Material SBS C1S 350gsm 18.7pt, 0.019in


Cartons | Special Boxes | becf-11e02

  • Special boxes produced for special occasions such as Valentines Day, New Year's Day, Mother’s Day, corporate presentation boxes, launch boxes, promotion boxes, corporate anniversary and celebration boxes are some of exclusive boxes.
  • Exclusive boxes can also be used to add extra value to a product or differentiate it from competition.
Packaging Template Dieline for Special boxes | becf-11e02 A10.20.03.03.32.51
This template is free to download in the following dimensions. Click here customize and download in other dimensions.

a : length 5.9055 in
b : width 3.937 in
c : height 5.9055 in
n : window width 3.537 in
m : bottom margin 1.2 in
glue flap 0.5 in
top tuck flap 0.6 in
dust flap 2.248 in
Material SBS C1S 350gsm 18.7pt, 0.019in


Cartons | Tray Boxes | becf-11a0b

  • This box is called as locked tray box.
  • Tray boxes are used for products like honey, jam, beverage and conserved food offered in the glass jar or bottle.
  • Products can be displayed, stored or carried in tray box.
  • Tray boxes are prepared the way that four corners are glued and locked. Glued boxes are ready to use when delivered to the customer. However locked boxes are delivered to the customer flatly and locked manually by the customer to operationalize the packaging.
  • Top of the box is open. If required it can be used with lid.
  • Tray box mostly used in food industry is also called jar box or bottle box.
  • It is also preferred in broad range of sectors like textile and technology (mobile phone box, clothing box, necktie box etc.) with lid.
Packaging Template Dieline for Tray boxes | becf-11a0b
This template is free to download in the following dimensions. Click here customize and download in other dimensions.

a : base length 3.937 in
b : base width 1.9685 in
c : height 1.5748 in
d : top length 4.7244 in
e : top width 2.7559 in
Material SBS C1S 350gsm 18.7pt, 0.019in


Cartons | Food Boxes | becf-12014

  • This box is called as milk box.
  • Food boxes are used to keep and carry food products safely and easily.
  • This category contains various box types including dessert box, bakery box, cake box, cupcake box, donut box, macaron box, pizza box, chocolate box and pastry box.
  • Food boxes are produced in accordance with the dimensions and weight of the product to keep.
  • These are disassembled boxes so they are delivered to the customer as a flat sheet and set up manually by folding up and locking together the sides.
  • Because these boxes keep food they should be laminated as it should be.
Packaging Template Dieline for Food boxes | becf-12014
This template is free to download in the following dimensions. Click here customize and download in other dimensions.

a : length 1.8504 in
b : width 1.4567 in
c : height 4.6457 in
Material SBS C1S 350gsm 18.7pt, 0.019in


Cartons | Special Boxes | becf-11e16

  • Special boxes produced for special occasions such as Valentines Day, New Year's Day, Mother’s Day, corporate presentation boxes, launch boxes, promotion boxes, corporate anniversary and celebration boxes are some of exclusive boxes.
  • Exclusive boxes can also be used to add extra value to a product or differentiate it from competition.
Packaging Template Dieline for Special boxes | becf-11e16
This template is free to download in the following dimensions. Click here customize and download in other dimensions.

a : length 3.9764 in
b : width 1.9685 in
c : height 2.7559 in
d : hand holding 3.1496 in
lock tab true
glue flap 0.5 in
bottom tuck flap 0.4724 in
Material SBS C1S 350gsm 18.7pt, 0.019in


Cartons | Food Boxes | becf-12012

  • This box is called as hinged stripper lock tray box or side lock cake box.
  • Food boxes are used to keep and carry food products safely and easily.
  • This category contains various box types including dessert box, bakery box, cake box, cupcake box, donut box, macaron box, pizza box, chocolate box and pastry box.
  • Food boxes are produced in accordance with the dimensions and weight of the product to keep.
  • These are disassembled boxes so they are delivered to the customer as a flat sheet and set up manually by folding up and locking together the sides.
  • Because these boxes keep food they should be laminated as it should be.
Packaging Template Dieline for Food boxes | becf-12012
This template is free to download in the following dimensions. Click here customize and download in other dimensions.

a : length 3.8386 in
b : width 3.8386 in
c : height 2.3622 in
d : length top 4.5276 in
e : width top 4.5276 in
Material SBS C1S 350gsm 18.7pt, 0.019in


Cartons | Snap Lock Boxes | becf-1091c

  • Snap lock base, back closure tuck end to front boxes are used in the markets with light products.
  • It is also known as snap lock base tuck top box, 123 bottom box, 1-2-3 bottom box or automatic closing (non-glued) box.
  • The product should be light (maximum 250 gr.) and shouldn’t spill or leak. If the product is dusty or liquid, it should have its own packaging and the product shouldn’t contact the interior of the box directly.
  • Filling the packaging can be done manually or automatically.
  • Snap lock base, back closure tuck end to front boxes are delivered to the customer the way that side parts are glued. Bottom closure is locked manually by the customer to operationalize the packaging.
  • This box is also known as “1-2-3 bottom”. Because it has a bottom closure that closes in 3 quick steps.
Packaging Template Dieline for Snap lock boxes | becf-1091c
This template is free to download in the following dimensions. Click here customize and download in other dimensions.

a : length 5.1181 in
b : width 3.1496 in
c : height 2.7559 in
k : number of locks 1
d : postal lock length 2.0 in
e : postal lock width 0.8 in
glue flap 0.5 in
top tuck flap 0.6 in
dust flap 1.5197 in
bottom tuck flap 0.5118 in
Material SBS C1S 350gsm 18.7pt, 0.019in
